Black-Gray

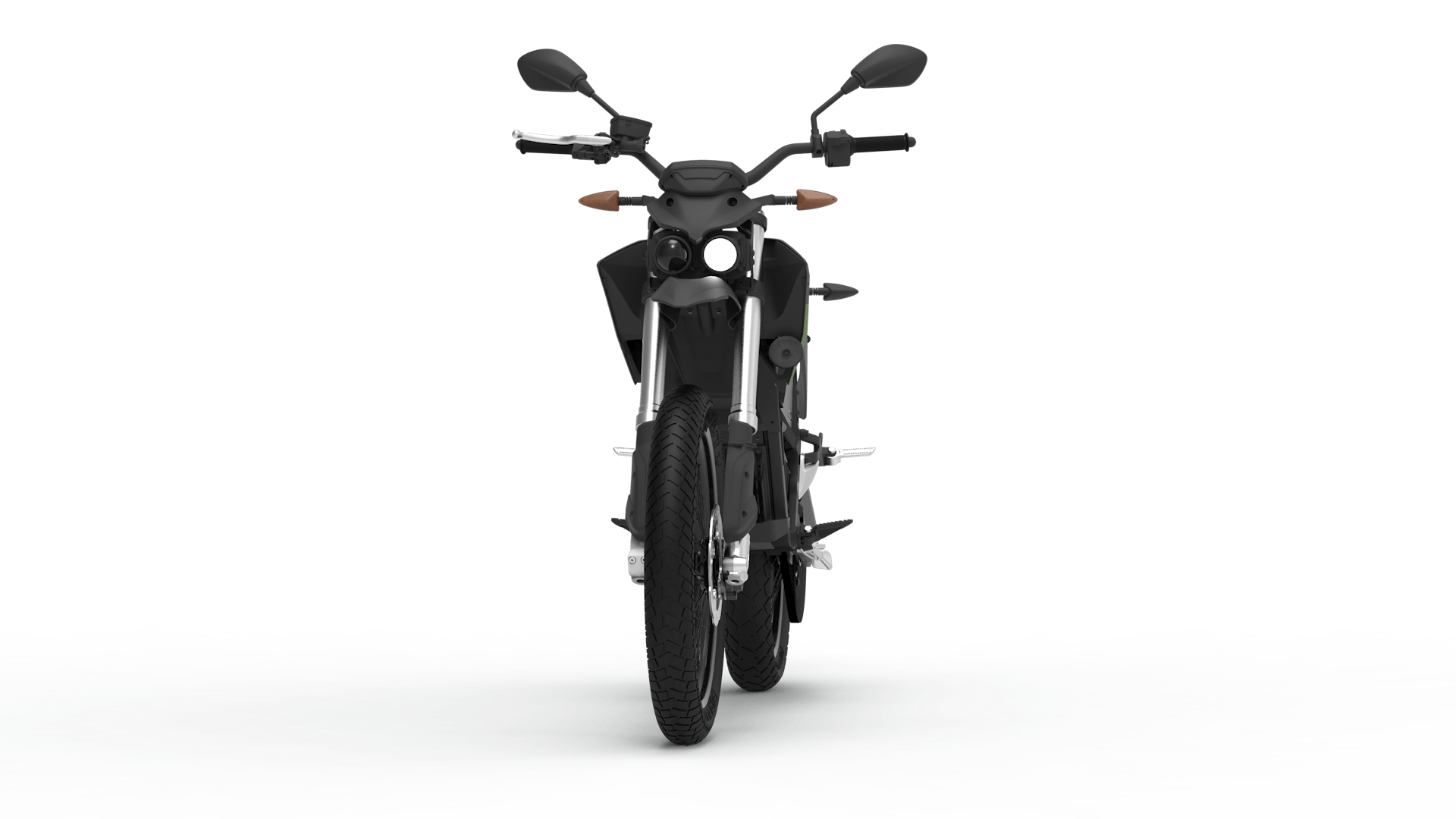

Zero FX

Dual sport

Black-Gray

85 mph

78 ft-lb

91 miles

1.3 hours

Play

Lean and Mean

The Zero FX draws from our rugged off-road roots. Locked and loaded for your favorite trails, shortcuts or rocketing away when traffic lights flash green, the Zero FX’s punchy Z-Force® powertrain, long legged suspension and dual sport equipment tackles virtually anything thrown its way.

Tuned in to your ride

Crossing from smooth asphalt to loose gravel fire roads? All good. Change performance profiles at the press of a button to master any terrain. The Zero FX is pre-programmed with Eco or Sport modes and performance can be fully customized using the Zero Motorcycles app where you can also see detailed ride stats.

Tuned in to your ride

Charge. Simply.

Wake up, ready to ride, with a “full tank” every day. No expensive charge station required. A simple 220 V household outlet satisfies all the needs of the Zero FX’s 650-watt onboard charger. Every outlet is now a “fueling” station.

Crave faster refills? Pick up an accessory Quick Charger to cut charge times by over 60%. Learn more.

Charge. Simply.

Your Low Maintenance Ride

Built for riding adventures and carefree living. Forget about messy oil changes, dust-clogged filters, fouled spark plugs, time-wasting tune-ups and greasy chain maintenance. The Zero FX’s motor is sealed. It has a single moving part that efficiently relays your throttle hand’s desires to your rear wheel via super-efficient carbon fiber belt-drive system. Ride more, easier.

The Zero FX’s advanced battery features life-of-motorcycle cell technology that’s covered by a five-year, unlimited kilometer warranty.

Your Low Maintenance Ride

The Zero FX’s advanced battery features life-of-motorcycle cell technology that’s covered by a five-year, unlimited kilometer warranty.

Stretch your endurance

Cruise through city streets. Or, hit the dirt. Push yourself and ride until your muscles throb or your legs give out. Most Zero FX riders find they’ve hit their endurance limits long before their battery. Continual improvements to the Z-Force® powertrain have imbued the Zero FX with the highest power and energy density battery in the industry. The Zero FX produces an impressive 146 km of “city” riding on a single charge.

Stretch your endurance

Performance

THE UNPRECEDENTED COMBINATION OF INDUSTRY-LEADING POWER, CONTROL, AND CONNECTION.

Battery
Charger
Motor
Frame
Brakes
Dash
Suspension
Wheels
Direct drive
Face

Battery

Zero Motorcycles’ Z-Force® battery is the most power and energy dense in the EV industry. The Z-Force 7.2 offers a maximum battery capacity of 7.2 kWh that delivers up to 146 km of city riding.

The battery is designed to last and backed by a five-year, unlimited kilometer warranty. The Zero FX also features Long Term Storage Mode to optimize the battery’s state of charge and further improve long term battery health.

Onboard charger

The Zero FX’s discreetly accessible 650 W onboard charger can be plugged into any household outlet. Charge times can be slashed by using optional Quick Chargers.

Motor

The Zero FX powerplant produces up to 106 Nm of torque. The air-cooled Interior Permanent Magnet (IPM) motor delivers impressive performance and fierce acceleration, which works in conjunction with regenerative braking to channel energy back into the battery.

No heavy, complicated or expensive liquid cooling. No routine maintenance. No fuss. This is the industry’s most efficient, powerful and compact motor.

Frame

The Zero FX’s robust aircraft-grade aluminum frame has been refined for over ten years. A descendant of Zero’s early motocross-style bikes, the frame’s optimized strength-to-weight ratio is the perfect delivery mechanism for the Z-Force® powertrain’s adrenaline pumping acceleration.

Brakes

The Bosch anti-lock brake system (ABS) delivers confident braking. Tested for just about any situation you can imagine, the system optimizes deceleration under hard braking. The brakes are equipped with adjustable levers for improved ergonomics. ABS can be switched on or off by the rider.

Dash

Full-color and bonded 5” TFT dash. The Zero FX dash projects the specs you need: speed, state of charge, power output, selected riding profile, projected recharge time. Sync with your smartphone to turn it into a secondary customizable dash or view detailed ride stats.

Suspension

Custom-tuned by Showa for Zero, the Zero FX’s suspension is rugged enough to handle jagged ruts and rock-strewn trails, while offering 218 mm of front travel and 227 mm at the rear.

Wheels and tires

A large 21-inch front wheel ensures the Zero FX hammers through the gnarly bits. Wrapped in high-performance Pirelli Scorpion MT-90 rubber, the Zero FX adeptly traverses dirt, rocks, or asphalt.

Direct drive

Strip away clutches, gears, shifting, chains and all their weighty complexities. Seamlessly accelerate with pure efficiency as energy quietly transforms into propulsion. The Zero FX is direct drive. Its state-of-the-art motor connects directly to the rear wheel using a carbon fiber belt.

Face

The Zero FX’s distinctive face features twin projector beam headlamps and an integrated fly screen, leading the way with a visual style matched to the bike’s sharp attitude.

Technical Specifications

01
Range
City:
91 miles (146 km)
Highway, 55 mph (89 km/h):
56 miles (90 km)
— Combined:
69 miles (111 km)
Highway, 70 mph (113 km/h):
39 miles (63 km)
— Combined:
54 miles (87 km)
EU Regulation 134/2014, Annex VII:
64 miles (104 km)
02
Motor
Peak torque:
78 ft-lb (106 Nm)
Peak power:
46 hp (34 kW) @ 4,300 rpm
Continuous power:
21 hp (15 kW) @ 4,300 rpm
Required licence:
A2 licence
Top speed (max):
85 mph (137 km/h)
Top speed (sustained):
70 mph (113 km/h)
Type:
Z-Force® 75-5 passively air-cooled, high efficiency, radial flux, interior permanent magnet, brushless motor
Controller:
High efficiency, 550 amp, 3-phase brushless controller with regenerative deceleration
03
Power system
Power pack:
Z-Force® Li-Ion intelligent integrated
Max capacity:
7.2 kWh
Nominal capacity:
6.3 kWh
Charger type:
650 W, integrated
Charge time (standard):
9.7 hours (100% charged) / 9.2 hours (95% charged)
— With one accessory charger:
4.1 hours (100% charged) / 3.6 hours (95% charged)
— With max accessory chargers:
1.8 hours (100% charged) / 1.3 hours (95% charged)
Input:
Standard 110 V or 220 V
04
Drivetrain
Transmission:
Clutchless direct drive
Final drive:
90T / 18T, Poly Chain® HTD® Carbon™ belt
05
Chassis / Suspension / Brakes
Front suspension:
Showa 41 mm inverted cartridge forks, with adjustable spring preload, compression and rebound damping
Rear suspension:
Showa 40 mm piston, piggy-back reservoir shock with adjustable spring preload, compression and rebound damping
Front suspension travel:
8.60 in (218 mm)
Rear suspension travel:
8.94 in (227 mm)
Front brakes:
Bosch Gen 9 ABS, J-Juan dual piston floating caliper, 240 x 4.5 mm disc
Rear brakes:
Bosch Gen 9 ABS, J-Juan single piston floating caliper, 240 x 4.5 mm disc
Front tire:
Pirelli Scorpion MT 90 A/T 90/90-21
Rear tire:
Pirelli Scorpion MT 90 A/T 120/80-18
Front wheel:
1.85 x 21
Rear wheel:
2.50 x 18
06
Dimensions
Wheelbase:
56.6 in (1,438 mm)
Seat height:
34.7 in (881 mm)
Rake:
25.4°
Trail:
4.1 in (104 mm)
07
Weight
Curb weight:
289 lb (131 kg)
Carrying capacity:
341 lb (155 kg)
08
Economy
Equivalent fuel economy (city):
486 MPGe (0.48 l/100 km)
Equivalent fuel economy (highway):
207 MPGe (1.13 l/100 km)
Typical cost to recharge:
£0.97
09
Pricing
MSRP:
£13,435
10
Warranty
Standard motorcycle warranty*:
2 years
Power pack warranty*:
5 years/unlimited miles

City

91 miles (146 km)

Highway, 55 mph (89 km/h)

56 miles (90 km)

— Combined

69 miles (111 km)

Highway, 70 mph (113 km/h)

39 miles (63 km)

— Combined

54 miles (87 km)

EU Regulation 134/2014, Annex VII

64 miles (104 km)

* For additional details about powerpack or standard warranty:
Click Here

Specifications are subject to change without notice. Imagery may not reflect most current product specifications. Zero Motorcycles reserves the right to make improvements and/or design changes without any obligation to previously sold, assembled or fabricated equipment.
